rhino3dm exercise 01

1 Extract info from `.3dm` file

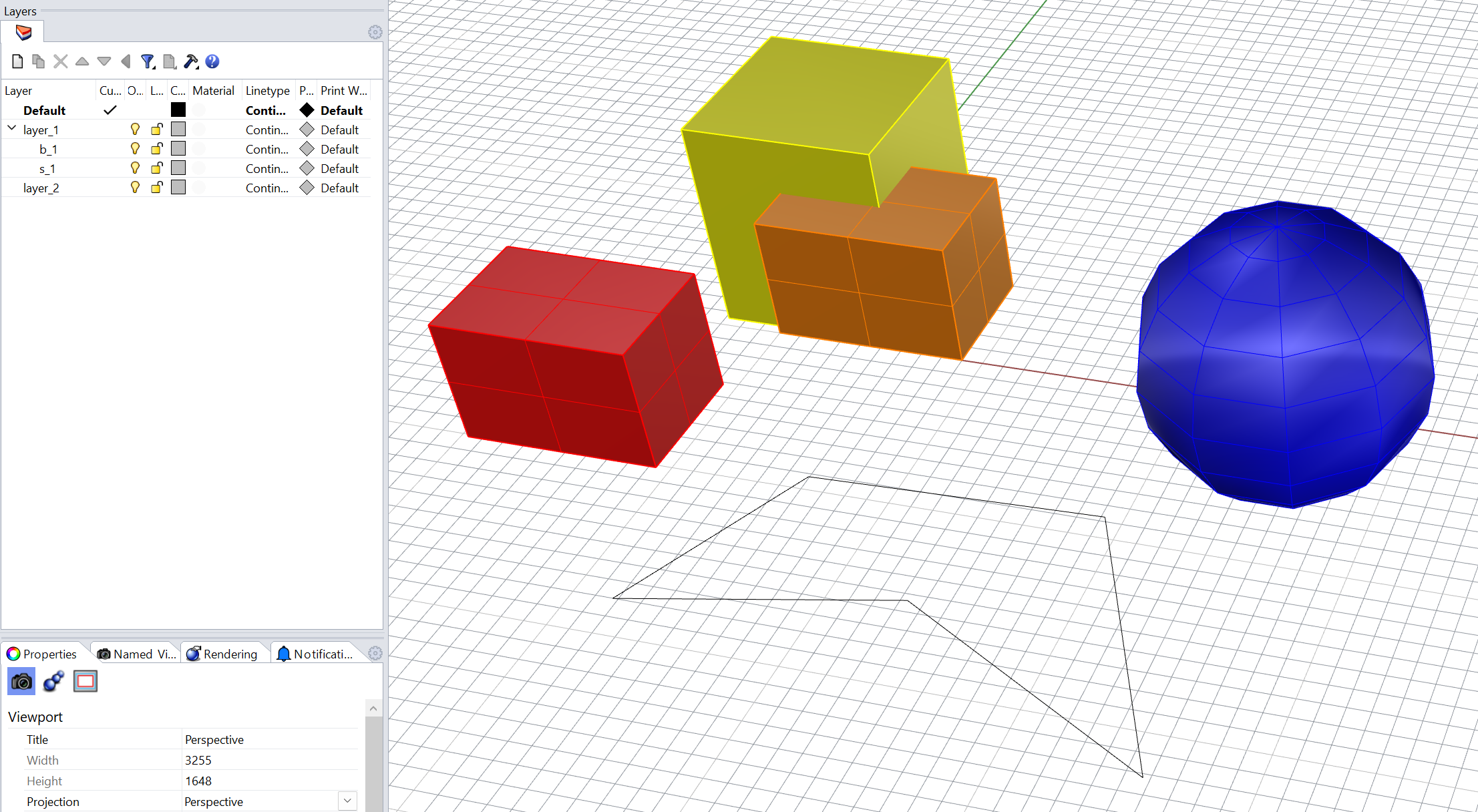

1.1 read `.3dm` file

import rhino3dm

model = rhino3dm.File3dm.Read('./data/oat_model.3dm')
print('model object: ', model)

1: read .3dm file as File3dm object

model object:  <rhino3dm._rhino3dm.File3dm object at 0x1055f6bb0>

File3dm.Read()

method rhino3dm.File3dm.Read()

Reads a 3dm file from the specified path.

Parameters:

path (str) – The file to read.

Returns:

new File3dm on success, None on error.

Return type:

File3dm

1.2 read `Layer`

layer_table = model.Layers
print('layer table: ', layer_table, '\n')

for idx, layer in enumerate(iter(layer_table)):
    print('layer ', idx, ' Object  : ', layer)
    print('      ', idx, ' Id      : ', layer.Id)
    print('      ', idx, ' Index   : ', layer.Index)
    print('      ', idx, ' Name    : ', layer.Name)
    print('      ', idx, ' Fullpath: ', layer.FullPath)

2: get the LayerTable object
3: iterate LayerTable to get each Layer and its attributes

layer table:  <rhino3dm._rhino3dm.File3dmLayerTable object at 0x1086aa9f0>

layer  0  Object  :  <rhino3dm._rhino3dm.Layer object at 0x10861cd70>
       0  Id      :  212960d6-ad46-439d-8516-772ce85fde03
       0  Index   :  0
       0  Name    :  Default
       0  Fullpath:  Default
layer  1  Object  :  <rhino3dm._rhino3dm.Layer object at 0x108696930>
       1  Id      :  430ce6c7-13d8-40d9-ae38-08e0e7d0f1df
       1  Index   :  1
       1  Name    :  layer_1
       1  Fullpath:  layer_1
layer  2  Object  :  <rhino3dm._rhino3dm.Layer object at 0x1086957b0>
       2  Id      :  8e04c4aa-0bcb-4331-9ac1-79ed7bacc9f1
       2  Index   :  2
       2  Name    :  b_1
       2  Fullpath:  layer_1::b_1
layer  3  Object  :  <rhino3dm._rhino3dm.Layer object at 0x1086977f0>
       3  Id      :  906c125d-ea30-483a-bf45-6fc769473e09
       3  Index   :  3
       3  Name    :  s_1
       3  Fullpath:  layer_1::s_1
layer  4  Object  :  <rhino3dm._rhino3dm.Layer object at 0x10867f9f0>
       4  Id      :  1d1e5147-f5b7-4fa1-82ea-3ece64f5994c
       4  Index   :  4
       4  Name    :  layer_2
       4  Fullpath:  layer_2

File3dm.Layers

attrib rhino3dm.File3dm.Layer

IList: Layers in this file.

Returns:

File3dmLayerTable

File3dmLayerTable

class rhino3dm.File3dmLayerTable

Each item is a rhino3dm.Layer object

Methods:

__getitem__()
__iter__()
__len__()
…

Layer

class rhino3dm.Layer

Attributes:

Color
FullPath
Id
Index
Locked
Name
ParentLayerId
Visible
…

1.3 read `Objects`

object_table = model.Objects
print('object table: ', object_table, '\n')

for idx, obj in enumerate(iter(object_table)):
    print('object ', idx, ' Object                : ', obj)
    print('       ', idx, ' Geometry              : ', obj.Geometry)
    print('       ', idx, ' Attributes            : ', obj.Attributes)
    print('       ', idx, ' Attributes.Id         : ', obj.Attributes.Id)
    print('       ', idx, ' Attributes.Name       : ', obj.Attributes.Name)
    print('       ', idx, ' Attributes.LayerIndex : ', obj.Attributes.LayerIndex)
    print('       ', idx, ' Attributes.ObjectColor: ', obj.Attributes.ObjectColor)
    print('       ', idx, ' Attributes.Visible    : ', obj.Attributes.Visible)
    print()

4: get ObjectTable in the model
5: iterate ObjectTable to get each Object and its attributes

object table:  <rhino3dm._rhino3dm.File3dmObjectTable object at 0x103cc4130>

object  0  Object                :  <rhino3dm._rhino3dm.File3dmObject object at 0x108695d30>
        0  Geometry              :  <rhino3dm._rhino3dm.Extrusion object at 0x1086949f0>
        0  Attributes            :  <rhino3dm._rhino3dm.ObjectAttributes object at 0x1086941b0>
        0  Attributes.Id         :  fc49c0ee-7bd9-4097-961d-3925257a4738
        0  Attributes.Name       :  solid_1
        0  Attributes.LayerIndex :  3
        0  Attributes.ObjectColor:  (255, 255, 0, 255)
        0  Attributes.Visible    :  True

object  1  Object                :  <rhino3dm._rhino3dm.File3dmObject object at 0x10867ff30>
        1  Geometry              :  <rhino3dm._rhino3dm.Brep object at 0x108695d30>
        1  Attributes            :  <rhino3dm._rhino3dm.ObjectAttributes object at 0x108695d30>
        1  Attributes.Id         :  478a0a94-ad34-41cf-b917-b6b0050dad8f
        1  Attributes.Name       :  polysurf_2
        1  Attributes.LayerIndex :  2
        1  Attributes.ObjectColor:  (255, 127, 0, 255)
        1  Attributes.Visible    :  True

object  2  Object                :  <rhino3dm._rhino3dm.File3dmObject object at 0x10865c1b0>
        2  Geometry              :  <rhino3dm._rhino3dm.PolylineCurve object at 0x10867ff30>
        2  Attributes            :  <rhino3dm._rhino3dm.ObjectAttributes object at 0x10867ff30>
        2  Attributes.Id         :  9afb6b4b-986d-47e6-8d2d-89c6d5448117
        2  Attributes.Name       :  curve_1
        2  Attributes.LayerIndex :  0
        2  Attributes.ObjectColor:  (0, 0, 0, 255)
        2  Attributes.Visible    :  True

object  3  Object                :  <rhino3dm._rhino3dm.File3dmObject object at 0x1086b4770>
        3  Geometry              :  <rhino3dm._rhino3dm.Mesh object at 0x10865c1b0>
        3  Attributes            :  <rhino3dm._rhino3dm.ObjectAttributes object at 0x10865c1b0>
        3  Attributes.Id         :  c85d4579-e3df-492c-a4e4-dc9626c19397
        3  Attributes.Name       :  ball_1
        3  Attributes.LayerIndex :  4
        3  Attributes.ObjectColor:  (0, 0, 255, 255)
        3  Attributes.Visible    :  True

object  4  Object                :  <rhino3dm._rhino3dm.File3dmObject object at 0x1086b49f0>
        4  Geometry              :  <rhino3dm._rhino3dm.Brep object at 0x10865c1b0>
        4  Attributes            :  <rhino3dm._rhino3dm.ObjectAttributes object at 0x10865c1b0>
        4  Attributes.Id         :  19067883-7bbc-4871-91bb-ad640c96bb46
        4  Attributes.Name       :  polysurf_1
        4  Attributes.LayerIndex :  2
        4  Attributes.ObjectColor:  (255, 0, 0, 255)
        4  Attributes.Visible    :  True

File3dm.Objects

attrib rhino3dm.File3dm.Objects

Returns a File3dmObjectTable: Gets access to the class associated with this file, which contains all objects.

File3dmObjectTable

class rhino3dm.File3dmObjectTable

Each item is a rhino3dm.Object object

Methods:

__getitem__()
__iter__()
__len__()
…

File3dmObject

class rhino3dm.File3dmObject

Attribs:

Attributes
- ObjectAttributes: Gets the attributes that are linked with this document object.
Geometry
- rhino3dm.GeometryBase: Gets the geometry that is linked with this document object.

ObjectAttributes

class rhino3dm.ObjectAttributes

Attribs:

Id
LayerIndex
MaterialIndex
Name
ObjectColor
Visible
…

1.4 read `Geometry`

for idx, obj in enumerate(iter(object_table)):
    print('object ', idx, ' Object                       : ', obj)
    print('       ', idx, ' Geometry                     : ', obj.Geometry)
    print('       ', idx, ' Geometry.ObjectType          : ', obj.Geometry.ObjectType)
    print('       ', idx, ' Geometry.BoundingBox()       : ', obj.Geometry.GetBoundingBox())
    print('       ', idx, ' Geometry.BoundingBox().Min   : ', obj.Geometry.GetBoundingBox().Min)
    print('       ', idx, ' Geometry.BoundingBox().Min.X : ', obj.Geometry.GetBoundingBox().Min.X)
    print('')

    # if isinstance(obj.Geometry, rhino3dm.Curve):
    if isinstance(obj.Geometry, rhino3dm.PolylineCurve):
        print('           curve Object       :', obj)
        print('           curve Geometry     :', obj.Geometry)
        print('           curve IsClosed     :', obj.Geometry.IsClosed)
        print('           curve IsPlanar     :', obj.Geometry.IsPlanar())
        print('           curve IsPolyline   :', obj.Geometry.IsPolyline())
        print()

        print('           curve PointCount   :', obj.Geometry.PointCount)

        for i in range(obj.Geometry.PointCount):
            # print('           curve pt ', i, ' : ', obj.Geometry.ToPolyline().PointAt(i))
            print('           curve pt ', i, ' : ', obj.Geometry.Point(i))

        print()

        print('           curve SegmentCount :', obj.Geometry.ToPolyline().SegmentCount)

        for i in range(obj.Geometry.ToPolyline().SegmentCount):
            print('           segement ', i, ' : ', obj.Geometry.ToPolyline().SegmentAt(i))

        print()

object  0  Object                       :  <rhino3dm._rhino3dm.File3dmObject object at 0x1086ceaf0>
        0  Geometry                     :  <rhino3dm._rhino3dm.Extrusion object at 0x1086b49f0>
        0  Geometry.ObjectType          :  ObjectType.Extrusion
        0  Geometry.BoundingBox()       :  <rhino3dm._rhino3dm.BoundingBox object at 0x10861f830>
        0  Geometry.BoundingBox().Min   :  -4.280928135761822,2.5452328892155567,-1.6829865361077092
        0  Geometry.BoundingBox().Min.X :  -4.280928135761822

object  1  Object                       :  <rhino3dm._rhino3dm.File3dmObject object at 0x10861c870>
        1  Geometry                     :  <rhino3dm._rhino3dm.Brep object at 0x10861f830>
        1  Geometry.ObjectType          :  ObjectType.Brep
        1  Geometry.BoundingBox()       :  <rhino3dm._rhino3dm.BoundingBox object at 0x10861f830>
        1  Geometry.BoundingBox().Min   :  0.0,0.0,0.0
        1  Geometry.BoundingBox().Min.X :  0.0

object  2  Object                       :  <rhino3dm._rhino3dm.File3dmObject object at 0x10862c7f0>
        2  Geometry                     :  <rhino3dm._rhino3dm.PolylineCurve object at 0x10861c870>
        2  Geometry.ObjectType          :  ObjectType.Curve
        2  Geometry.BoundingBox()       :  <rhino3dm._rhino3dm.BoundingBox object at 0x103cf9db0>
        2  Geometry.BoundingBox().Min   :  1.7635839661870252,-22.199390961255418,0.0
        2  Geometry.BoundingBox().Min.X :  1.7635839661870252

           curve Object       : <rhino3dm._rhino3dm.File3dmObject object at 0x10862c7f0>
           curve Geometry     : <rhino3dm._rhino3dm.PolylineCurve object at 0x103cf9db0>
           curve IsClosed     : True
           curve IsPlanar     : True
           curve IsPolyline   : True

           curve PointCount   : 6
           curve pt  0  :  1.7635839661870252,-18.01287713465675,0.0
           curve pt  1  :  5.955418421843674,-9.19466507794998,0.0
           curve pt  2  :  19.16215707583545,-8.725676195963398,0.0
           curve pt  3  :  25.715850208939404,-22.199390961255418,0.0
           curve pt  4  :  13.289303668521596,-15.366027492596611,0.0
           curve pt  5  :  1.7635839661870252,-18.01287713465675,0.0

           curve SegmentCount : 5
           segement  0  :  <rhino3dm._rhino3dm.LineCurve object at 0x103cf9db0>
           segement  1  :  <rhino3dm._rhino3dm.LineCurve object at 0x103cf9db0>
           segement  2  :  <rhino3dm._rhino3dm.LineCurve object at 0x103cf9db0>
           segement  3  :  <rhino3dm._rhino3dm.LineCurve object at 0x103cf9db0>
           segement  4  :  <rhino3dm._rhino3dm.LineCurve object at 0x103cf9db0>

object  3  Object                       :  <rhino3dm._rhino3dm.File3dmObject object at 0x10861daf0>
        3  Geometry                     :  <rhino3dm._rhino3dm.Mesh object at 0x10862c7f0>
        3  Geometry.ObjectType          :  ObjectType.Mesh
        3  Geometry.BoundingBox()       :  <rhino3dm._rhino3dm.BoundingBox object at 0x10862c7f0>
        3  Geometry.BoundingBox().Min   :  16.164949083117783,-2.8815754439567156,-7.0
        3  Geometry.BoundingBox().Min.X :  16.164949083117783

object  4  Object                       :  <rhino3dm._rhino3dm.File3dmObject object at 0x1086cf2b0>
        4  Geometry                     :  <rhino3dm._rhino3dm.Brep object at 0x10861daf0>
        4  Geometry.ObjectType          :  ObjectType.Brep
        4  Geometry.BoundingBox()       :  <rhino3dm._rhino3dm.BoundingBox object at 0x1086cf370>
        4  Geometry.BoundingBox().Min   :  -9.675258776512376,-10.151641586438862,0.0
        4  Geometry.BoundingBox().Min.X :  -9.675258776512376

GeomtryBase

class rhino3dm.GeometryBase

Attribs:

ObjectType
…

Methods:

GetBoundingBox()
…

BoundingBox

class rhino3dm.BoundingBox

Constructor:

BoundingBox(min, max)
BoundingBox(minX, minY, minZ, maxX, maxY, maxZ)
…

Attribs:

Min:
- rhino3dm.Point3d: Gets or sets the point in the minimal corner.
Max:
- rhino3dm.Point3d: Gets or sets the point in the maximal corner.
Center:
- rhino3dm.Point3d: Gets the point in the center of the bounding box.
Area:
- float: Gets the area of this BoundingBox.
Volume:
- float: Gets the volume of this BoundingBox.
Diagonal:
- rhino3dm.Vector3d: Gets the diagonal vector of this BoundingBox. The diagonal connects the Min and Max points.

Methods:

ClosestPoint(point)
- Finds the closest point on or in the bounding box.
- Parameters: point (rhino3dm.Point3d) – Sample point.
- Returns: The point on or in the box that is closest to the sample point.
- Return type: rhino3dm.Point3d
Contains(point)
- Tests a point for bounding box inclusion. This is the same as calling Contains(point, false)
- Parameters: point (rhino3dm.Point3d) – Point to test.
- Returns: True if the point is on the inside of or coincident with this bounding box; otherwise false.
- Return type: bool
…

Point3d

class rhino3dm.Point3d

Constructor:

Point3d(x, y, z)

Attributs:

X: float: Gets or sets the X (first) coordinate of this point.
Y: float: Gets or sets the Y (second) coordinate of this point.
Z: float: Gets or sets the Z (third) coordinate of this point.

Methods:

DistanceTo(other)
- Computes the distance between two points.
- Parameters: other (rhino3dm.Point3d) – Other point for distance measurement.
- Returns: The length of the line between this and the other point; or 0 if any of the points is not valid.
- Return type: float
…

Curve

class rhino3dm.Curve

PolylineCurve

class rhino3dm.PolylineCurve

Polyline

class rhino3dm.Polyline

1 Extract info from .3dm file

1.1 read .3dm file

1.2 read Layer

1.3 read Objects

1.4 read Geometry

1.5 backup code

1 Extract info from `.3dm` file

1.1 read `.3dm` file

1.2 read `Layer`

1.3 read `Objects`

1.4 read `Geometry`
